ELLIPSE

Price on demand

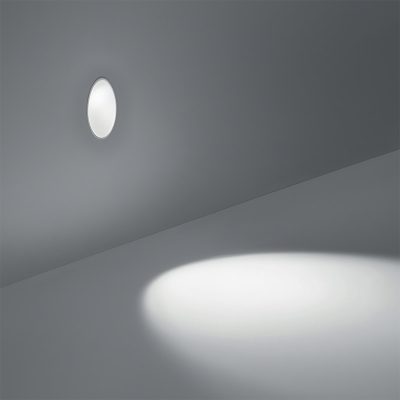

The ELLIPSE wall-mounted step light sits flush with interior or exterior walls, offering low-glare, recessed optics with a 45° tilt. Available in multiple sizes and color temperatures, it provides reliable, homogeneous illumination with versatile dimming options. Suitable for dry and wet locations, it ensures long-lasting, high-quality performance.

Features:

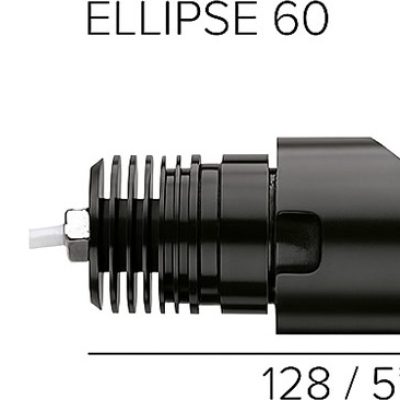

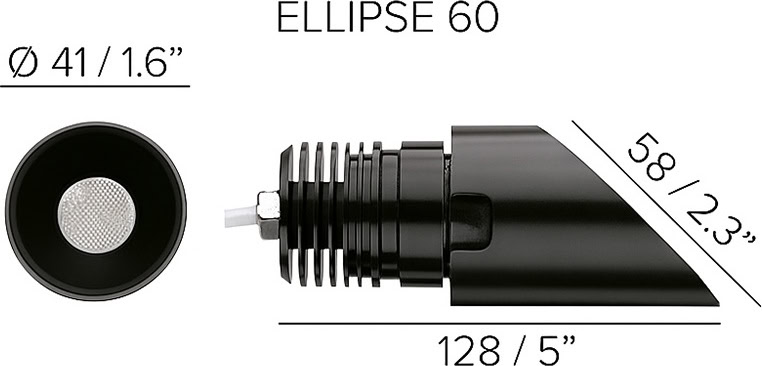

  • Available in three versions: ELLIPSE 60 code 64425 (dry location) 1.6”x 2.3” – ELLIPSE 60 code 66436 (wet location) 1.6”x 2.3” – ELLIPSE 100 (dry location) 2.8”x 4”
  • Deep recessed optics on a 45° tilt and reflector cup available also in black for low glare
  • Installation through a housing box to be separately ordered
  • Available in colour temperatures of 2200K CRI80, 2700K CRI93, 3000K CRI93 and 4000K CRI93
  • Wattage: ELLIPSE 60, 3W at 24V DC. ELLIPSE 100, 12W at 48V DC and 350 mA
  • 24V DC and 48V DC: features an on board DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to 140°F
  • Dimming options depend on power supply and additional control units to be separately ordered as accessories
  • Dry location and wet location
  • Standards: UL 2108, CSA C22.2

Spec Sheet

Choose options

SKU : EL-6 Categories , , , , , Brand:

*Please note: Colour swatches are for reference only and may not exactly match the final product

Shipping delay : On request

Dark Tools Favs

Why choose ELLIPSE?

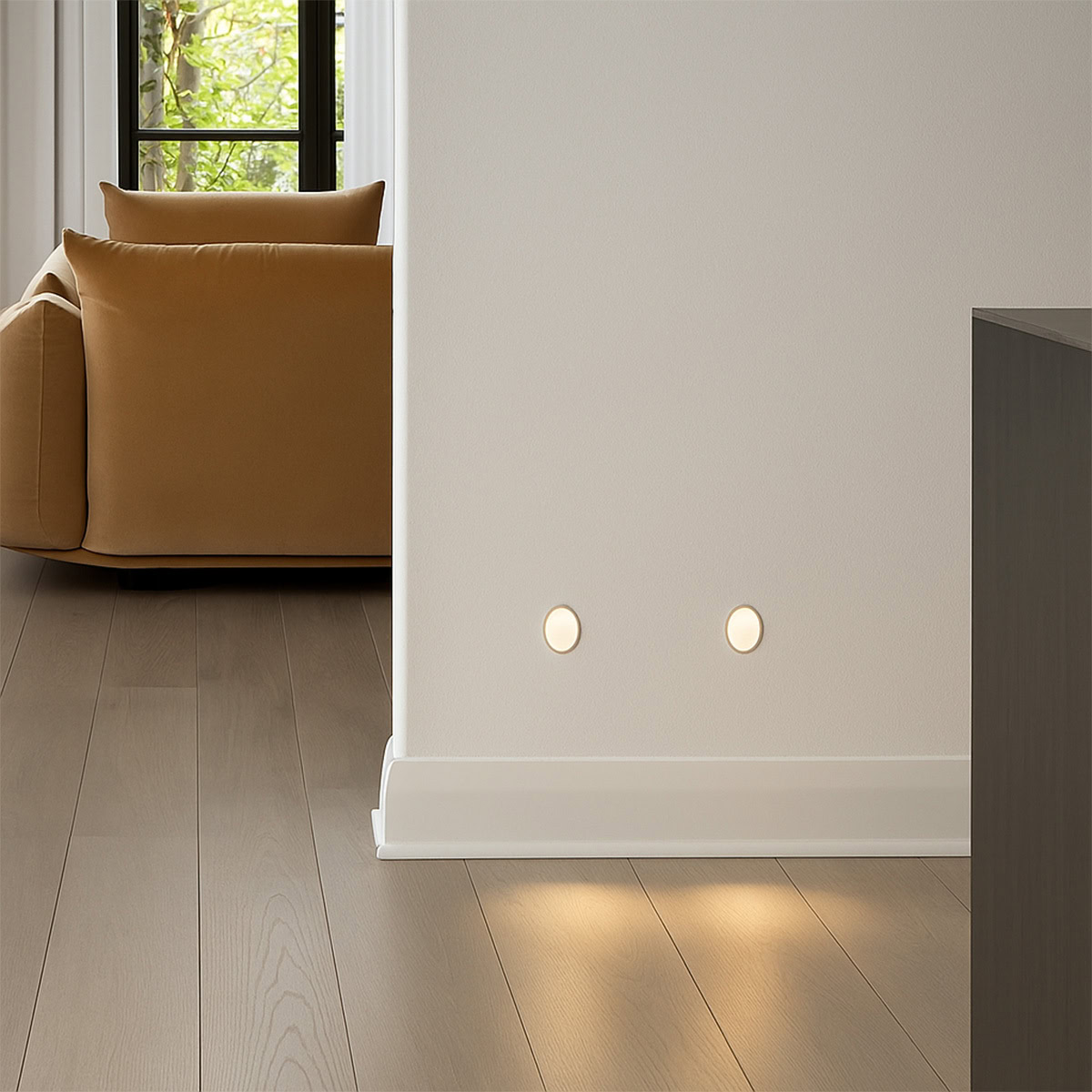

Flush with the wall, these step lights create clean, functional illumination for both indoor and outdoor spaces. Deep recessed optics and optional black reflector cups reduce glare while maintaining even light. Multiple versions and color temperatures make them flexible, reliable, and built to last for years.
