Features:
Body
- Durable airtight aluminum body with heat sink to provide maximum airflow for the LED light source.
LED Characteristics
- This general application light fixture in 7 to 30 watt options that maintains uniform intensity producing up to 2325 lumens; with a typical CRI of 95.
- On-fixture color selectable switch allows switching between 2700 K, 3000 K, 3500 K, 4000 K and 5000 K color temperatures or DTW (2000 – 3000 K).
Dimming
- 100%-10% dimming capability.
- This fixture is compatible with industry standard forward-phase / reverse-phase and TRIAC/ELV dimmers. 0-10V dimming capability available with commercial driver (see dimming compatibility list).
Mounting

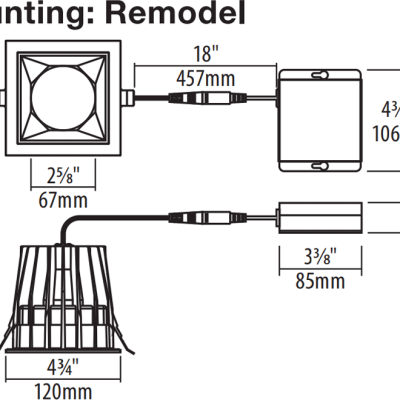

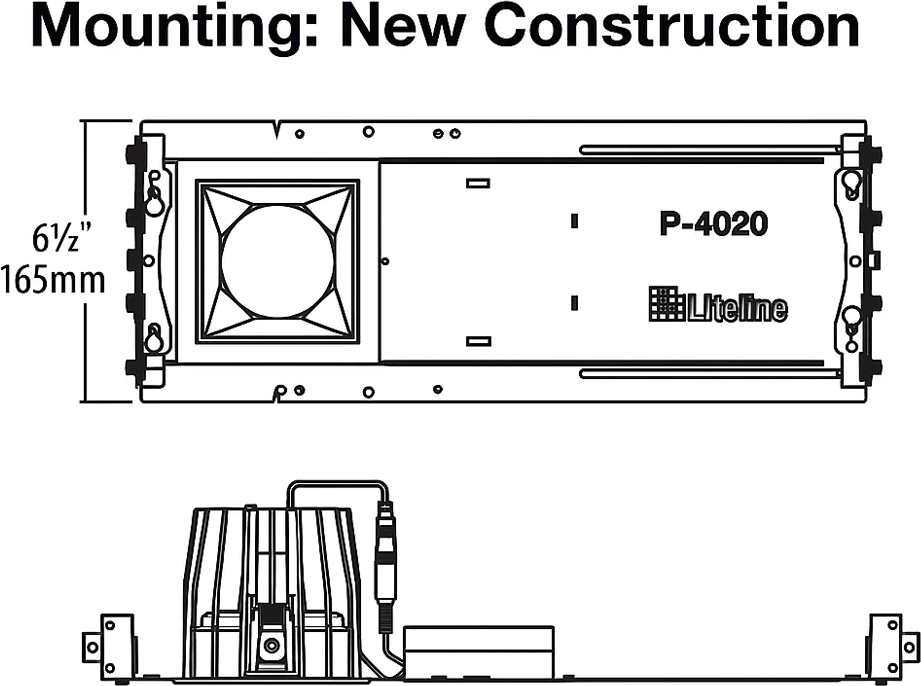

- Mounting Includes two spring loaded clips to attach to any ceiling material, up to 1.5″ thick. Compatible with standard 3.5″ nominal hole cut sizes.
LED Driver
- Extruded aluminum hardwire box with dimmable class II electronic LED driver with 100-135V AC input.
- Includes an 18″ FT6 rated cable with DC 2.1 connector between driver and fixture approved for use in plenums and suspended ceilings.
- Other optional drivers available.
- Quick Connect push-in Terminals Three “Quick Connect” push-in terminals for fast and easy wiring.
Minimum Starting Temperature
